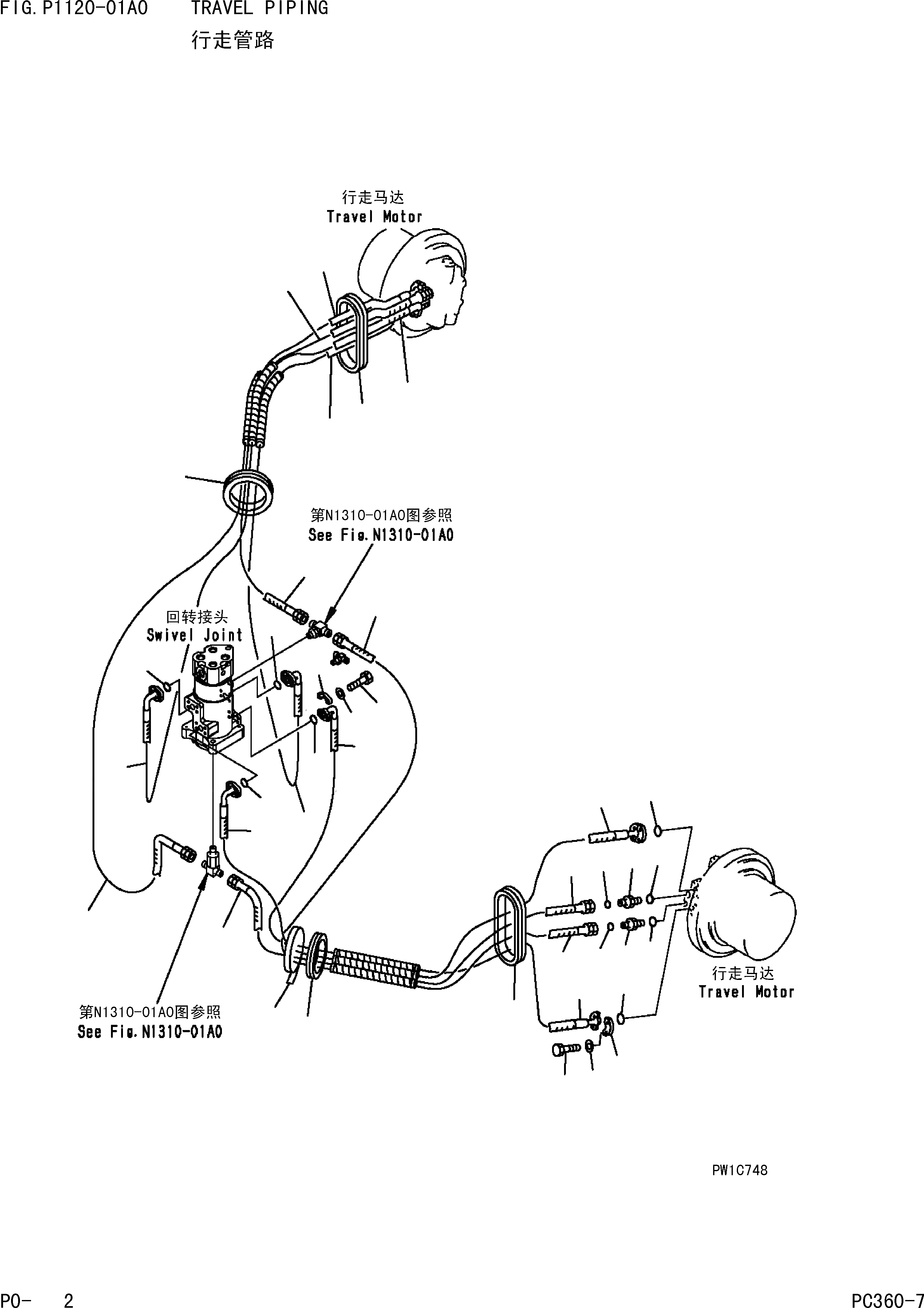

TRAVEL PIPING
17
2
15
1
17
17
16
3
4
5
15
16
15
14
13
13
14
18
12
1
18
13
18
13
14
8
6
7
18
17
10
9
11
16
15
3
5
4
2
For full view, you need register
Parts on group :
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 20Y-62-12121 | [2] | GROMMET Komatsu | 0.26 kg. |
| ["Field_1: 36201-"] | ||||
| 2. | 207-62-53350 | [2] | GROMMET Komatsu | 0.3 kg. |
| ["Field_1: 36201-"] | ||||
| 3. | 07371-31049 | [8] | FLANGE Komatsu | 0.12 kg. |
| ["Field_1: 36201-"] analogs:["0737121049"] | ||||
| 4. | 07372-21035 | [16] | BOLT Komatsu | 0.033 kg. |
| ["Field_1: 36201-"] | ||||
| 5. | 01643-51032 | [16] | WASHER Komatsu | 0.17 kg. |
| ["Field_1: 36201-"] analogs:["R0164351032"] | ||||
| 6. | 02781-00522 | [2] | UNION Komatsu | 0.16 kg. |
| ["Field_1: 36201-"] | ||||
| 7. | 02896-11015 | [2] | O-RING Komatsu | 0.21 kg. |
| ["Field_1: 36201-"] analogs:["21D0969770", "855051016"] | ||||
| 8. | 07002-12434 | [2] | O-RING Komatsu China | 0.01 kg. |
| ["Field_1: 36201-"] analogs:["0700202434", "0700213434"] | ||||
| 9. | 11Y-62-12520 | [2] | NIPPLE Komatsu | 0.08 kg. |
| ["Field_1: 36201-"] | ||||
| 10. | 02896-11009 | [2] | O-RING Komatsu China | 0.01 kg. |
| ["Field_1: 36201-"] analogs:["R0289611009", "0286911009"] | ||||
| 11. | 07002-11423 | [2] | O-RING Komatsu China | 0.001 kg. |
| ["Field_1: 36201-"] analogs:["0700201423"] | ||||
| 12. | 08034-20536 | [2] | BAND Komatsu | 0.003 kg. |
| ["Field_1: 36201-"] | ||||
| 13. | 207-62-64850 | [2] | HOSE ASS'Y Komatsu OEM | 6.1 kg. |
| ["Field_1: 36201-"] | ||||
| 14. | 07000-13032 | [4] | O-RING Komatsu China | 0.002 kg. |
| ["Field_1: 36201-"] analogs:["YM24321000350", "YM24311000320", "0700003032"] | ||||
| 15. | 207-62-64810 | [2] | HOSE ASS'Y Komatsu OEM | 6 kg. |
| ["Field_1: 36201-"] | ||||
| 17. | 02762-00322 | [2] | HOSE Komatsu China | 0.614 kg. |
| ["Field_1: 36201-"] | ||||
| 18. | 02762-00523 | [2] | HOSE Komatsu OEM | 1.501 kg. |
| ["Field_1: 36201-"] | ||||
